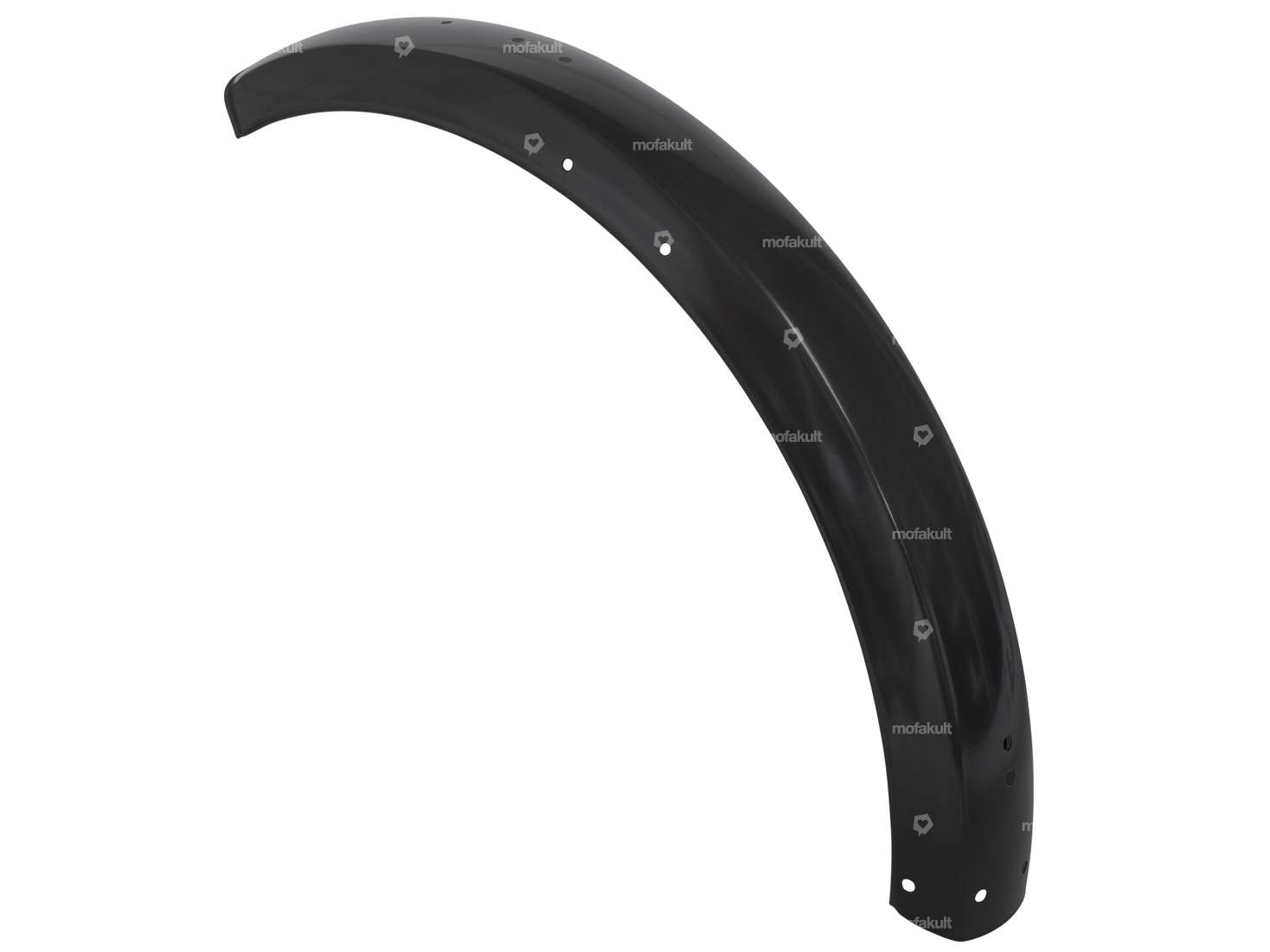

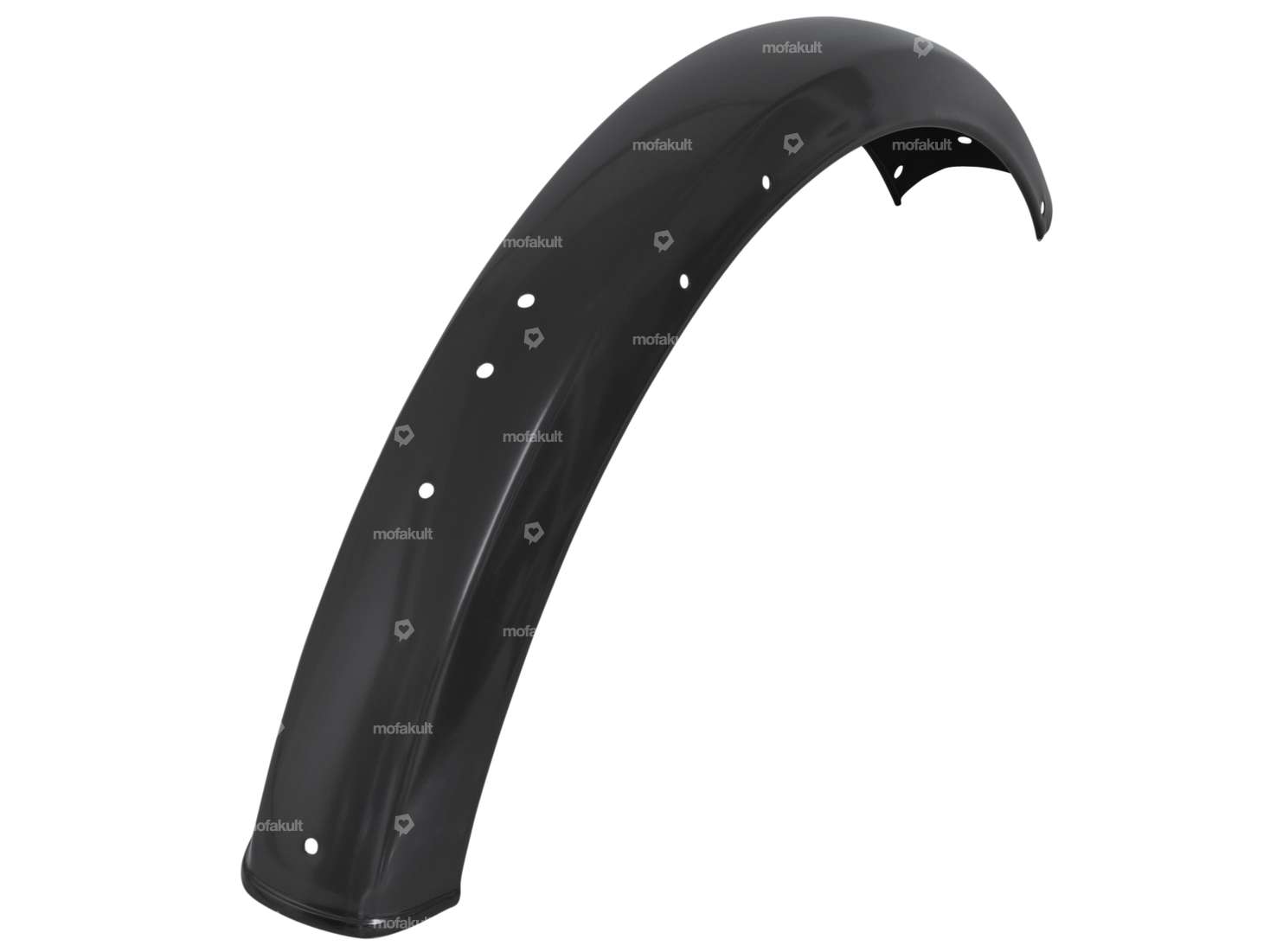

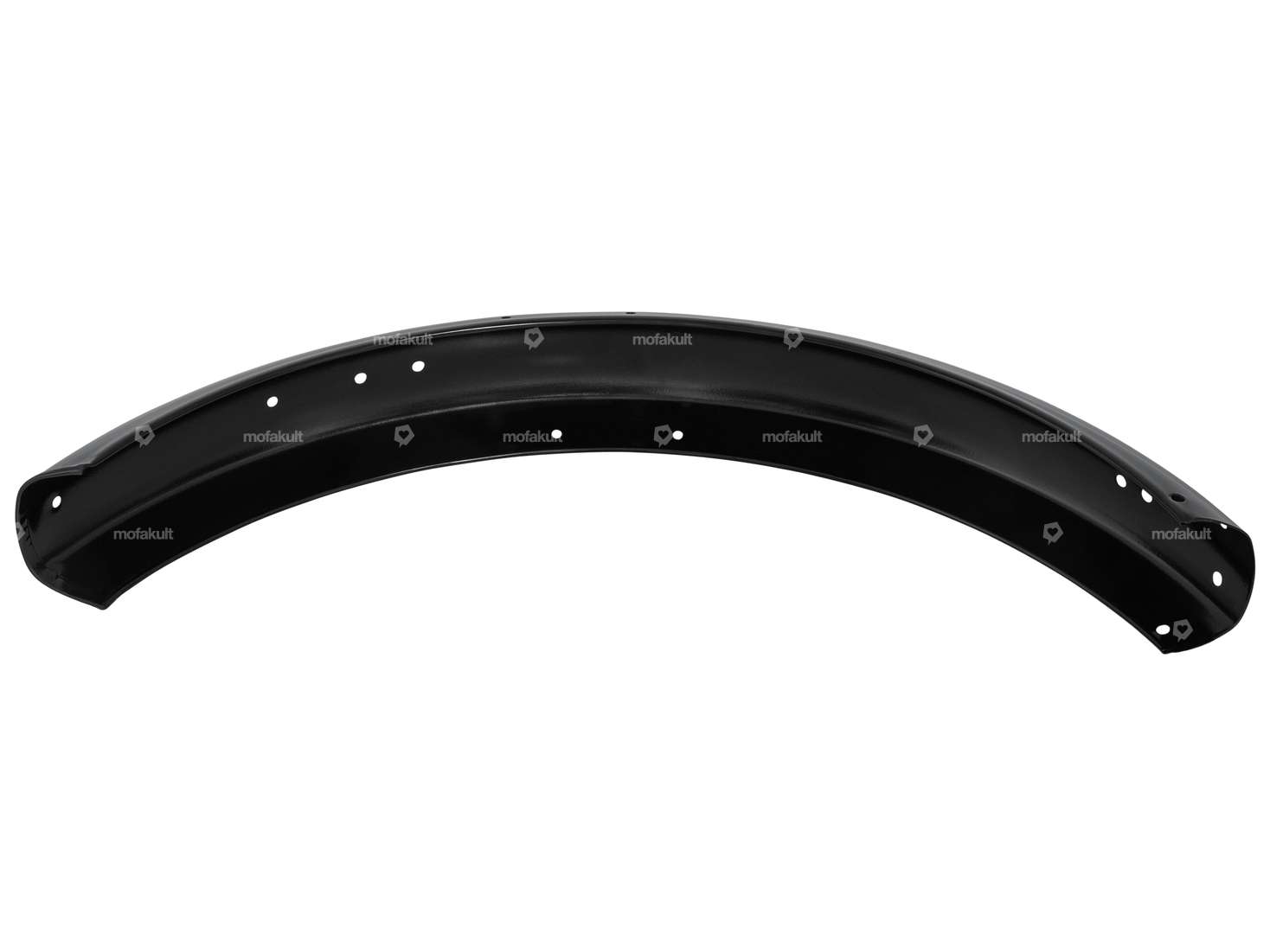

Front, black primed steel mudguard for your Puch Maxi S or N moped with 17-inch rims.
Since the mudguard is folded at the front, there are no sharp edges in the direction of travel, which significantly reduces the risk of injury.
All original holes are provided for mounting the lower mudguard struts and the upper tube bend.
The holes on both sides of the mudguard are provided for mounting the original cable guides.
Furthermore, there are four holes for mounting an edge protector or splash guard flap.
Finally, there are also two additional holes on the top for universal purposes, e.g. a decorative figure. e.g. a decorative figure.
Shape: part-round
Width of mudguard profile (A): 80 mm
Height of mudguard profile (B): 40 mm
End: closed folded / not folded
Material: steel, primed black
Total height from support surface to top edge (C): 185 mm
Total length over ends (D): 570 mm
Circumference (E): 715 mm
The mudguard is only primed, meaning there may be slight scratches.
Other parts for your bike fairing, such as paint polish or mounting material, can be found under accessories.
Nostalgic product for the highest demands from the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Color | black |
| Material | Steel |
| Surface | primed |
| Mounting type | Nuts & bolts |
| Wheel size | 17 " |
| Folding the ends | closed folded, not folded |
| Shape of the mudguard | partly round |
| Total length over ends | 570 mm |
| Scope | 715 mm |
| Wide mudguard profile | 80 mm |
| Height of mudguard profile | 40 mm |
| Total height from support surface to top edge | 185 mm |
| Puch |
