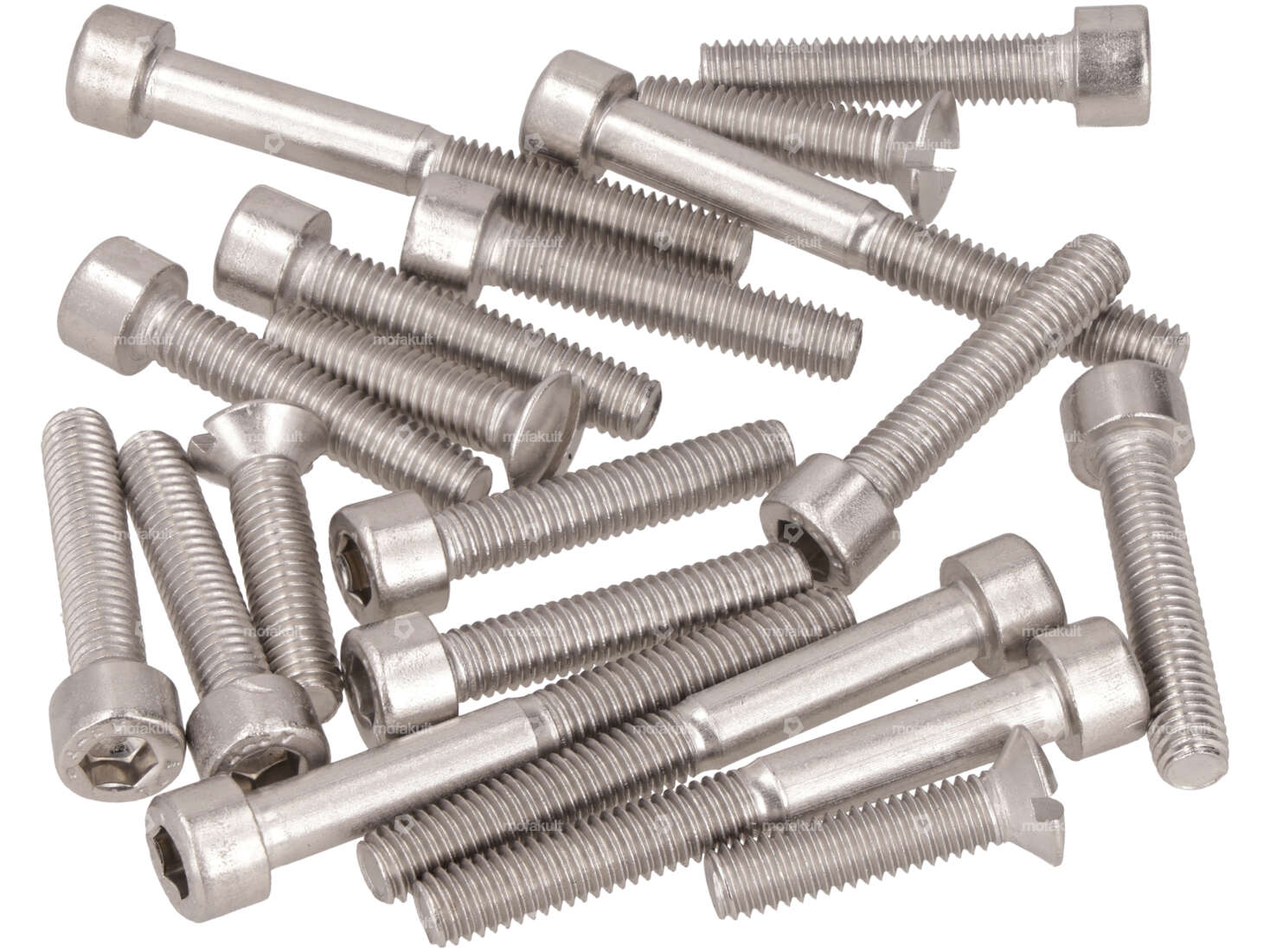

swiing® revival screw set Motor Inox | Puch E50

GPO gasket set | Puch E50

Manufacturer: GPO · Area of application: Standard · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Decompressor: Yes

Oil filler plug with sealing ring | Puch Maxi

Material: Steel · Surface: galvanized (blue) · Number of components: 2 pcs · Thread type: M10x1.5 (standard thread) · Drive: Slot · Thread length: 6 mm · Screw head: Lens head · Total length: 14.6 mm · Ø External head: 14 mm · Puch OEM number: 364.1.10.660.1

swiing® revival M8x12 oil drain plug & copper ring | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Copper · Material: Steel · Thread type: M8x1.25 (standard thread) · Color: silver · Surface: galvanized (blue) · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Thread length: 12 mm · Width across flats Screw: 13 mm · Total length: 18 mm · Puch OEM number: 901.1053

swiing® revival plain bearing clutch basket | Puch E50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival stud bolt set M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Thread type: M6x1 (standard thread) · Surface: galvanized (blue) · Diameter: 5.9 mm · Total length: 106 mm · Drive: External hexagon · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats SW: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Thread type: MF10x1 (fine pitch thread) · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Drive: External hexagon · Height: 8 mm · Width across flats SW: 17 mm

15 mm circlip clutch basket E50 engine

Nominal diameter: 15 mm · Fuse type: Outside · Manufacturer: Puch · Material: Spring steel · Place of use: Clutch · Ø outside: 17 mm · Ø inside: 13.8 mm · Thickness: 0.95 mm

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Thickness: 1 mm · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft High End with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
