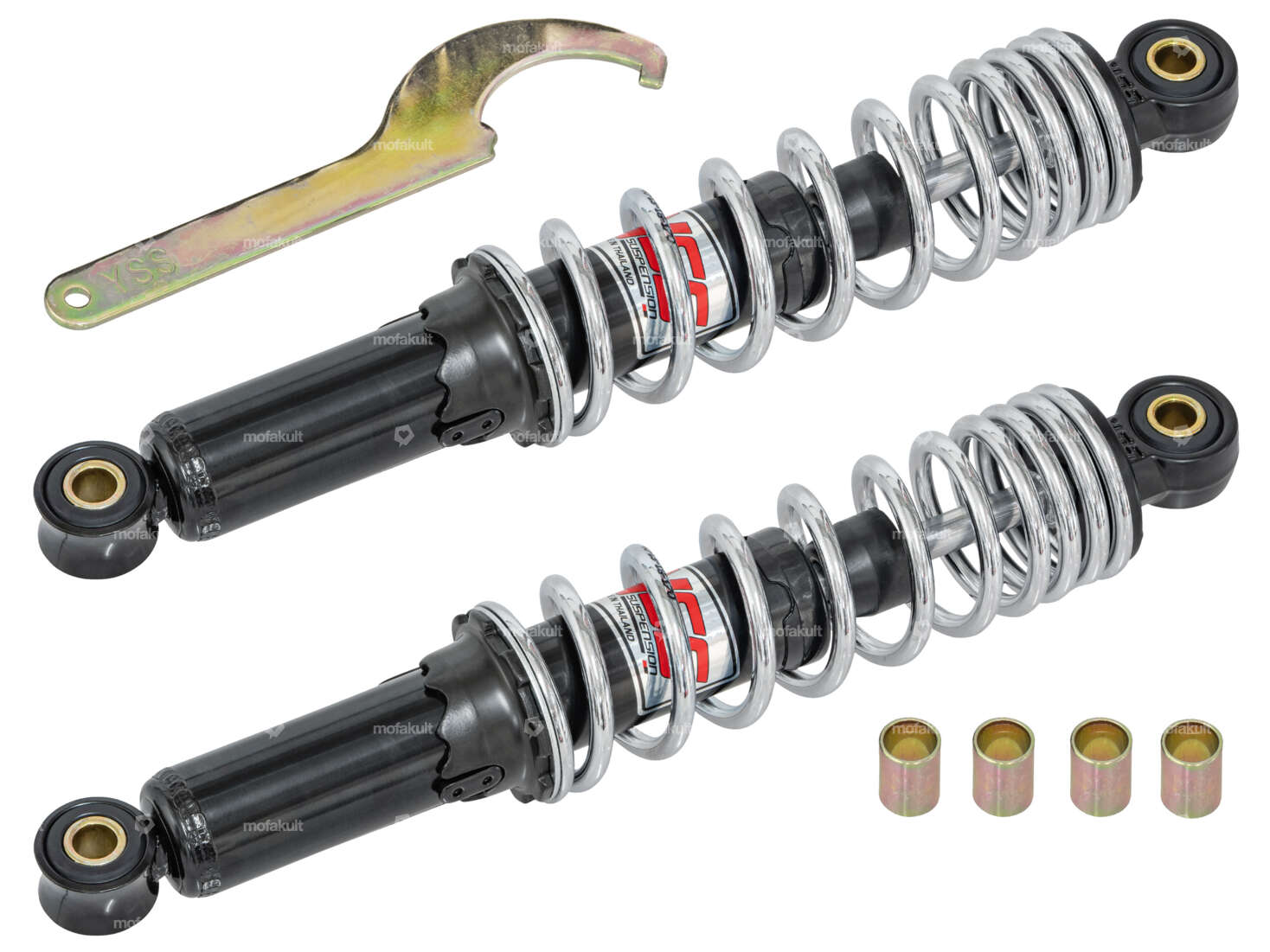

Adjustable oil-pressure shock absorbers in black with chrome-plated coil springs for your moped, scooter, and small motorcycle.
The spring stiffness or preload can be adjusted to five different levels using the special spring mount. The rear springs should always be secured with large U-washers to prevent the bearing sleeves from shifting when lateral forces are applied.
Length (mounting point to mounting point): 300 mm
; Outer diameter of coil spring: 52 mm
; Shaft diameter: 32 mm
; Mounting bushings: 10 mm / 12 mm
; Color: black / chrome
The package includes one pair.
Rear springs from other manufacturers, as well as washers and mounting hardware, can be found in the accessories section.
A quality product from the manufacturer YSS.
| Manufacturer | YSS |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Damping type | Hydraulic (oil) |
| Ø outside | 52 mm |
| Total length | 330 mm |
| Color | black, Chrome |
| Ø spars | 32 mm |
| Adjustable | Yes |
| Mounting type | Nuts & bolts |
| Number of fixing points | 2 pcs |
| Ø Fastening inside | 10 mm, 12 mm |
| Hole spacing | 300 mm |
