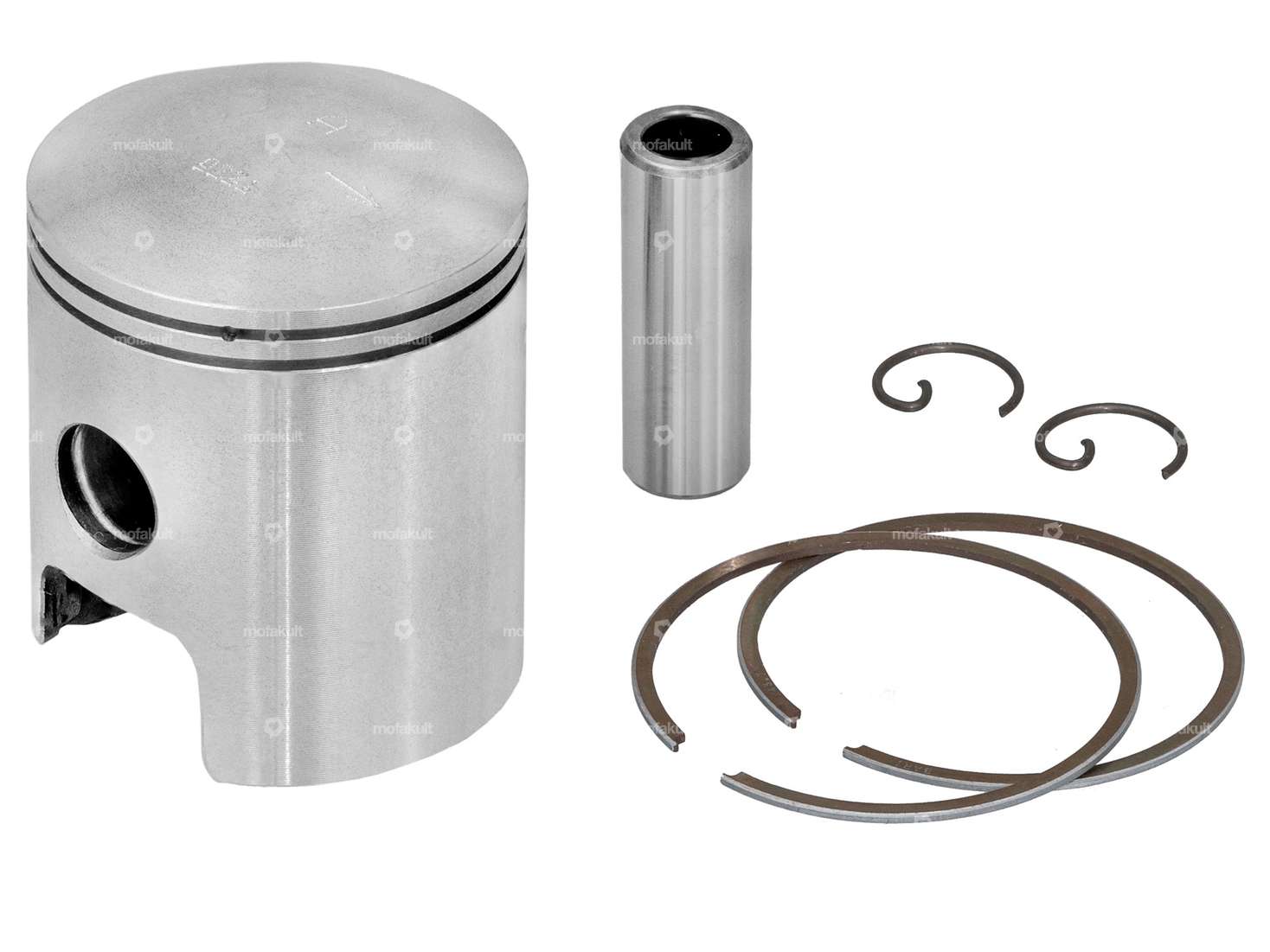

43.7 mm ¨oum dimension piston with two 1 mm rectangular piston rings with internal locking (IS) for the Metra-Kit cylinder on your Puch moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Spanish manufacturer Barikit.
| Nominal diameter | 43.5 mm |
| Manufacturer | Barikite |
| Ø outside piston (A) | 43.65 mm |
| Compression height (C) | 22.3 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 52.2 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 99 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
Metrakit piston 43.5 mm | Puch
Nominal diameter: 43.5 mm · Manufacturer: Metracite · Ø outside piston (A): 43.45 mm · Compression height (C): 22.9 mm · Curvature (D): 3.1 mm · Total piston height (E): 49.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 85 g
EUR 47.50
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Surface: burnished · Total length: 130 mm · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 23.70
Metrakit 43.5 mm cylinder kit (65 cc - camouflaged) | Puch
Manufacturer: Barikite · Manufacturer: Metracite · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43.5 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
EUR 160.70
Explore categories from Piston
Moped fans also bought
Continental 2.00 - 2.50 x 17" tube
Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR6 car valve · Wheel size: 17 "
EUR 17.70
swiing® ingenious crankshaft "High End" | Puch E50
Manufacturer: swiing® ingenious parts · Weight: 968 g · Material: Aluminum · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm
EUR 163.10
GPO stud bolt special M6 x 106 mm galvanized (10.9 strength) | Puch
Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Strength class: 10.9 · Thread length: 15 mm · Thread length: 19 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 5.15

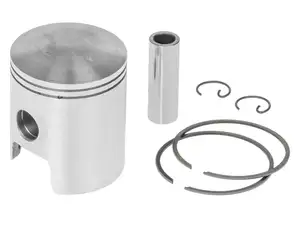

Barikit piston 44 mm MetraKit cylinder oversize | Puch
Nominal diameter: 44 mm · Manufacturer: Barikite · Ø outside piston (A): 44 mm · Compression height (C): 22.3 mm · Curvature (D): 3.35 mm · Total piston height (E): 52.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Ø piston pin (B): 12 mm · Weight piston kit: 100 g
EUR 65.40

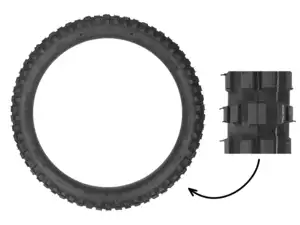

VeeRubber 2.50 x 17" tires VRM031 (V031) studs
