Puch engine & gearbox

Gasket gearbox cover Puch Maxi Kickstarter

Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 5 pcs

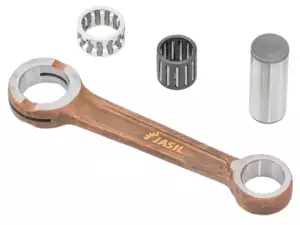

Jasil connecting rod | Puch

Manufacturer: Jasil · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Total length: 114.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 14 mm · Ø lower connecting rod eye outside: 24.6 mm · Ø upper connecting rod eye outside: 20.9 mm · Ø lower bearing inside: 18 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 14/15 x 9.75 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34 mm · Thickness: 10 mm · Area of application: Standard · Area of application: Tuning

GPO reinforcement plate 1.5 mm clutch (2-/ 3-jaw) Inox | Puch E50

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Height: 1.5 mm · Ø inside: 40 mm · Ø outside: 90.5 mm · Area of application: Road use

Spacer washer 17/24/0.3 crankshaft L17 bearing | Puch

Ø inside: 17 mm · Nominal diameter inside: 17 mm · Thickness: 0.3 mm · Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Ø outside: 24 mm

swiing® ingenious puller L17 / BO15 / E15 shoulder bearing

Diameter: 24 mm · Diameter: 40.3 mm · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Width across flats trigger: 8 mm · Width across flats trigger: 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Total length: 120 mm · Area of application: (Dis)assembly tool · Surface: galvanized (blue) · Number of components: 1 pcs

Fan cover NOS | Puch X30 NG-2AH

Manufacturer: Puch · Material: Aluminum · Color: silver

swiing® revival connecting rod bushing Ø 12 mm | Puch

Ø inside: 12 mm · Nominal diameter inside: 12 mm · Ø outside: 14 mm · Total height: 12 mm · Manufacturer: swiing® revival parts

Koyo 12.7/17.46/15.8 pinion shaft | Puch ZA50

Bearing type: Needle box · Dimension needle bearing: 12.7/17.5 x 15.7 · Ø inside: 12.7 mm · Ø outside: 17.5 mm · Manufacturer: Koyo · Width: 15.7 mm

swiing® revival gearbox cover gasket | Puch Maxi S LG2 ZA50 engine

Total length: 175 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Width: 133 mm · Thickness: 0.3 mm · Number of fixing points: 6 pcs

Rito Crankshaft Racing | Puch E50

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs · Area of application: Racing · Area of application: Tuning

swiing® revival clutch spring 2-disc version | Puch Z50

Spring design: Pressure spring · Ø wire: 4 mm · Ø inside: 30.5 mm · Ø outside: 39 mm · Total length: 19.5 mm · Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Spring steel · Color: gray · Area of application: Original · Area of application: Standard

Spring kickstarter Puch E50

Spring design: Torsion spring

swiing® revival fitting sleeve engine housing | Puch Z50, ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø outside: 10 mm · Total length: 20 mm

Gasket cylinder base 1 mm | Puch

Material: Sealing carton · Place of use: Cylinder base · Thickness: 1 mm · Nominal diameter: 50 mm · Ø inside: 50 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

Rubber kickstarter without lettering | Puch / Tomos

Material: Rubber · Ø inside: 8.5 mm · Ø outside: 17.2 mm · Total length: 64 mm

Starter cable in engine | Puch ZA50

Ø Stranded wire: 1.5 mm · Cable length: 68 mm · Nipple shape: Barrel (transverse) · Ø nipple: 6 mm · Nipple length: 8 mm · Manufacturer: Made in Austria · Puch OEM number: 910.4.18.001.0

Oil seal NBR 17/40/7 A DUO | Puch E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

Oil seal NBR 25/35/7 A Gearbox shaft | Puch ZA50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 25 mm · Width: 7 mm · Ø outside: 35 mm · Manufacturer: Puch · Material: NBR

Gilardoni italkit diaphragm seal | Puch

Manufacturer: Gilardoni italkit · Material: Sealing paper · Place of use: Admission · Hole pattern [mm]: 34 x 60 · Thickness: 0.5 mm · Area of application: Racing · Area of application: Tuning

swiing® revival thrust washer 12.5/18/1.4 gearbox | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 12.5 mm · Ø outside: 18 mm · Thickness: 1.4 mm

Connecting rod bushing 10/12/13 bronze | Puch

Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 12 mm · Total height: 13 mm · Manufacturer: Puch · Material: special bearing bronze

swiing® revival decoupling shaft (old & new version) | Puch X30 Velux

Manufacturer: swiing® revival parts · Surface: gas nitrided · Ø outside: 10 mm · Area of application: High End · Total length: 88.8 mm

Rubber washer starter shaft E50

Manufacturer: Puch · Material: Rubber · Color: black · Puch OEM number: 050.1221

swiing® ingenious spring gearshift (reinforced, +20%) Inox | Puch X30 Z50

Manufacturer: swiing® ingenious parts · Material: Chrome steel (colloquially known as stainless steel)

swiing® ingenious spring gearshift Inox | Puch Velux

Spring design: Nose feather · Manufacturer: swiing® ingenious parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: electropolished · Area of application: Standard · Alternative version of the Puch OEM number: 320.5.14.018.1

swiing® revival cylinder base gasket 38 mm 0.5 mm | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm · Ø cylinder: 38 mm

swiing® revival gearbox cover gasket | Puch Velux X30

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Thickness: 0.4 mm · Number of fixing points: 7 pcs

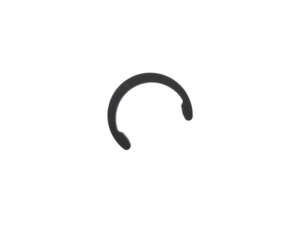

Crescent ring clutch shaft Puch E50

Fuse type: Outside · Place of use: Clutch · Manufacturer: Puch

Shaft seal NBR 16/25/7 A Kickstarter | Puch E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 25 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

Jasil crankshaft full cheeks (new model) | Puch E50

Manufacturer: Jasil · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 10 mm · Thread length: 13.5 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 23.3 mm · Length 2nd paragraph: 25 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 964 g · Number of gears: 1 pcs · Area of application: Racing

Oil seal NBR 16/28/7 BS Kickstarter | Puch Z50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Ø inside: 16 mm · Ø outside: 28 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: Sheet steel cage ball-guided · Groove ring: Yes

NSK E20 shoulder ball bearing

Bearing type: Deep groove ball bearing · Stock number: E20 · Ø inside: 20 mm · Ø outside: 47 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass

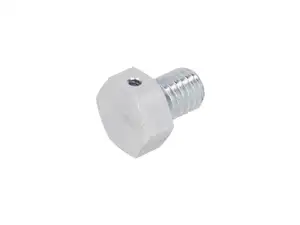

swiing® revival oil drain plug | Puch ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Screw head: Hexagon · Drive: External hexagon · Puch OEM number: 321.1.10.670.1

M22 sealing ring 22.5/26.6/1.5 Fiber

Ø inside: 22 mm · Ø outside: 27 mm · Thickness: 1.5 mm · Material: Fiber · Surface: raw

Cover plate clutch torsion spring metal | Puch MS, DS, VS

Ø inside: 8 mm · Ø outside: 21 mm · Puch OEM number: 050.1219

Rito connecting rod | Puch

Manufacturer: Rito · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Ø upper connecting rod eye outside: 20.5 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34.15 mm · Thickness: 10 mm · Total length: 114 mm · Area of application: High End

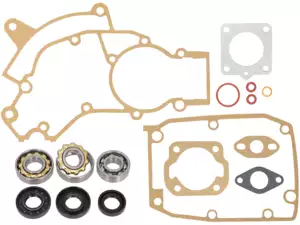

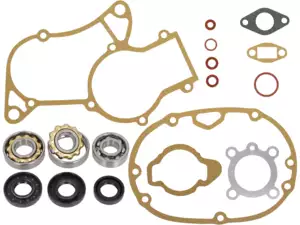

swiing® revival Seal Kit ZA50 Engine | Puch Maxi S-2A

Manufacturer: swiing® revival parts · Number of components: 10 pcs · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

Gearbox cover (kickstarter) | Puch Maxi

Material: Aluminum · Number of fixing points: 5 pcs

swiing® revival nut & washer for clutch (kickstart) | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 12 mm · Height: 5 mm · Width across flats: 19 mm · Strength class: 8

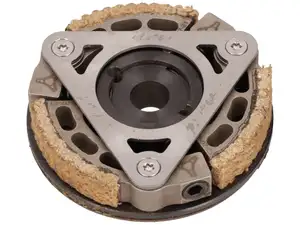

HK clutch "Racing" Aramid | Puch E50

Manufacturer: HK Clutches · Material: Steel · Material addition: Chrome steel (colloquially known as stainless steel) · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

O-ring oil drain ZA50 large

Place of use: Outlet · Ø inside: 11 mm · Ø outside: 16 mm · Cord thickness: 2.5 mm · Color: black · Manufacturer: Puch · Puch OEM number: 901.3784

O-ring oil drain ZA50 small

Place of use: Outlet · Ø inside: 4.2 mm · Ø outside: 9 mm · Cord thickness: 2.4 mm · Color: black · Manufacturer: Puch · Puch OEM number: 900.3797

Oil seal NBR 10/18/6 A Clutch cover | Puch X30 Velux

Place of use: Clutch cover · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 10 mm · Ø outside: 18 mm · Width: 6 mm · Manufacturer: Puch · Material: NBR

Oil seal NBR 22/40/7 AS crankshaft | E50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

Oil seal NBR 17/28/7 AS Pinion shaft | Puch Z50

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 17 mm · Ø outside: 28 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

Cylindrical roller Ø 3.5 x 7.5 Gearbox | Puch Z50

Diameter: 3.5 mm · Manufacturer: Puch · Width: 7.4 mm · Material: Steel · Surface: Hardened · Area of application: Standard

swiing® revival Bearing Washer 20.2/31.7/1 Large Bearing Ring (Old Version) | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 20.2 mm · Ø outside: 31.7 mm · Thickness: 1 mm

Nut M8x1 Inox

Drive: External hexagon · Thread type: MF8x1 (fine pitch thread) · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Nominal diameter (thread): 8 mm

swiing® revival cable support Z50 Motor Inox | Puch X30 Sport

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Ø inside: 5.1 mm · Ø inside: 5.4 mm · Number of fixing points: 1 pcs · Thread type: M6x1 (standard thread)
