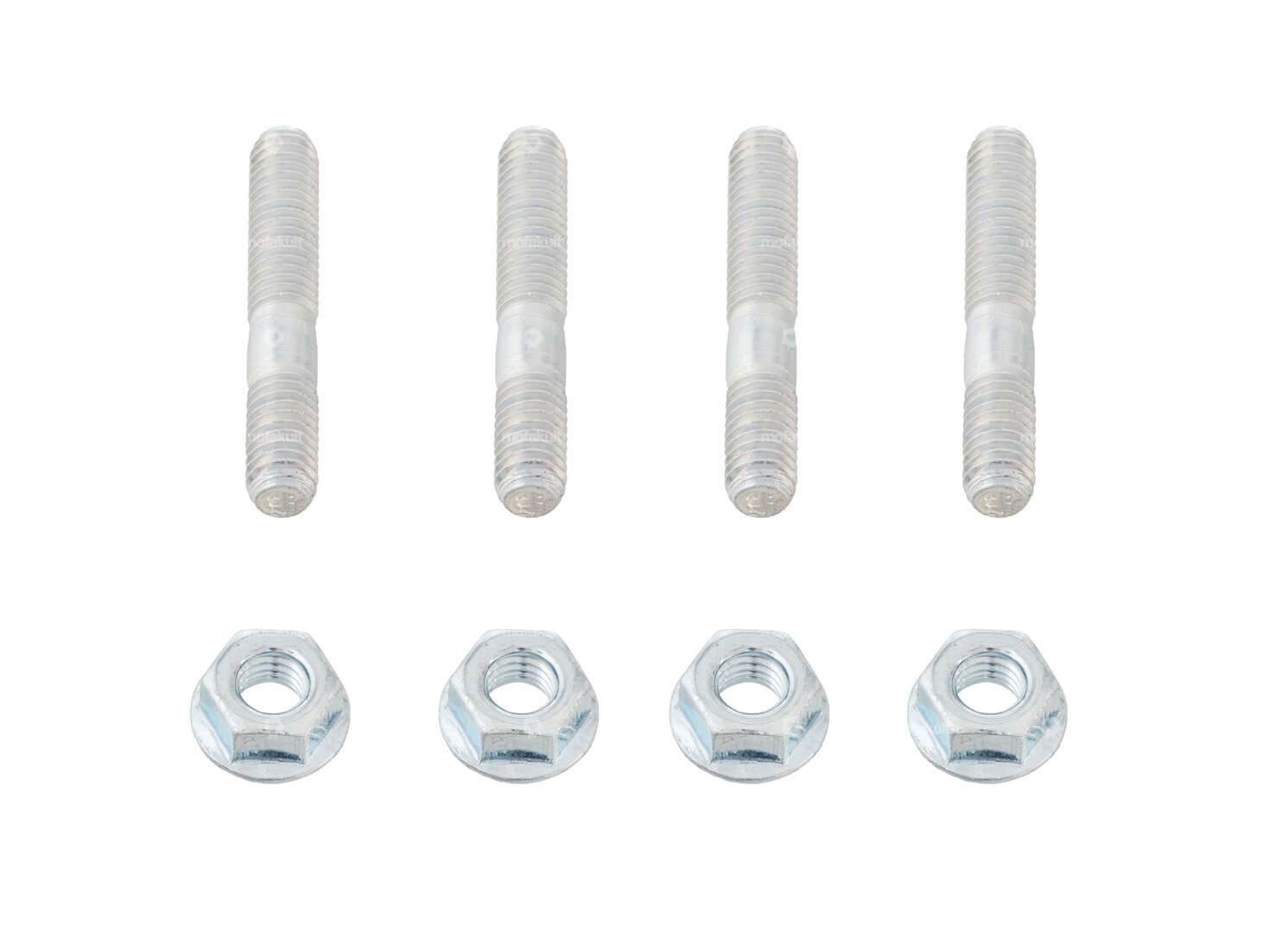

swiing® revival stud bolt set M6x38 (10.9 strength) galvanized

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Diameter: 5.95 mm · Total length: 30 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9 · Thread length: 12 mm

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Manufacturer: Elring · Area of application: Chemistry · Contents: 70 ml · Color: green · Gap dimension (max.): 0.2 mm · Temperature resistance (min.): -55 - 250 °C

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® revival stud bolt M6x38 inlet/outlet galvanized (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 38 mm · Strength class: 10.9 · Thread length: 11 mm · Thread length: 19 mm

Stud bolt M6/M7 x 35 mm (extended) Inlet/outlet

Material: Steel · Surface: burnished · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 7 mm · Total length: 35 mm

swiing® ingenious Stud Bolt Set M6 / M5 (Grade 12.9) Cylinder | Sachs 50/2, 503, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: burnished · Surface: galvanized (blue) · Diameter: 6 mm · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Total length: 27.3 mm · Thread length: 9.5 mm · Thread length: 14 mm · Width across flats: 8 mm · Strength class: 10 · Strength class: 12.9 · Drive: External hexagon

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Thickness: 2.1 mm · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Area of application: Standard

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Airsal gasket set 44 - 45 mm | Puch

Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Decompressor: Yes · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole spacing inlet: 38 mm · Area of application: Tuning

swiing® revival Stud Bolt Set M6x106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Nominal diameter (thread): 6 mm · Drive: External hexagon · Total length: 106 mm · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1

Outlet gasket 18 - 22 mm metal ring

Manufacturer: GPO · Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Thickness: 2 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.7 mm · Hole spacing: 38 - 42.5 mm

swiing® ingenious 15 mm carburetor camouflaged | Puch

Nominal diameter: 15 mm · Width: 50 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø fuel hose connection: 6 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Height: 95 mm · Total length: 66 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Area of application: Tuning · Clamping screw torque (max.): 4 N/m · Alternative version of the Puch OEM number: 349.1.15.100.0 · Alternative version of the Puch OEM number: 349.2.15.800.0 · Alternative version of the Puch OEM number: 349.4.15.500.0 · Alternative version of the Puch OEM number: 349.4.15.000.0 · Alternative version of the Puch OEM number: 349.4.15.300.0 · Alternative version of the Puch OEM number: 349.6.15.400.0 · Alternative version of the Puch OEM number: 349.7.15.700.0 · Alternative version of the Puch OEM number: 349.8.15.400.0 · Alternative version of the Puch OEM number: 349.9.15.300.0

swiing® ingenious M6 special nut exhaust flange (hexagon socket) (10 strength)

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Total length: 25 mm · Ø outside: 10 mm · Thread type: M6x1 (standard thread) · Thread length: 17 mm

swiing® revival stud bolt set M6x30 (10.9 strength) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread length: 12 mm · Width across flats: 10 mm · Strength class: 8 · Strength class: 10.9 · Drive: External hexagon
