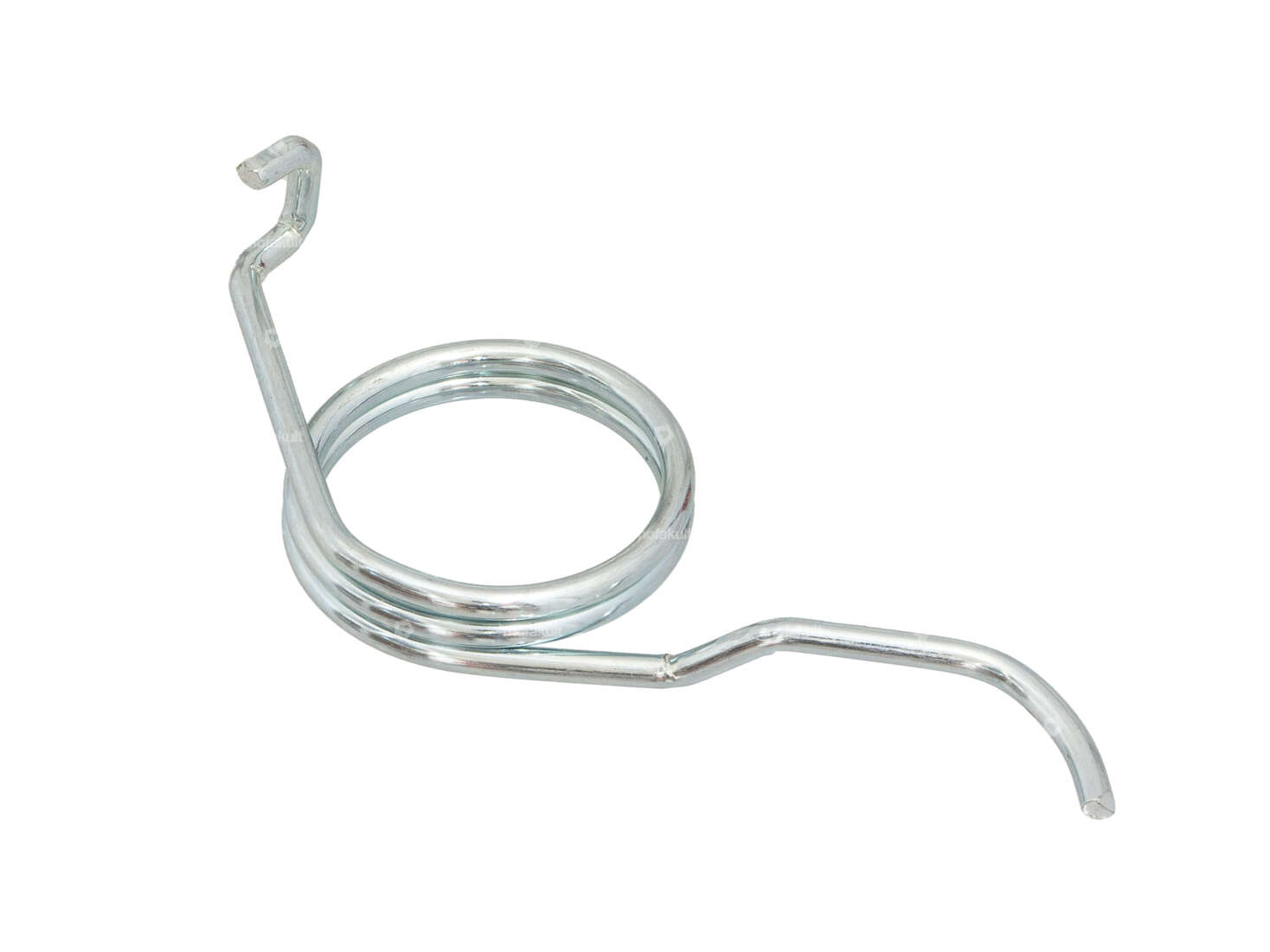

Torsion spring brake plate front & rear Puch DS50, VZ50, VS50, MV50

Guide times | Steyr - Daimler - Puch AG

Material: Paper · DIN format: A5 · Number of pages: 23 pcs · Language: German

Engine gasket set | Puch MS, VS, DS, MV, M

Number of components: 8 pcs · Area of application: Standard

Thrust Washer 12.5/25/1.5 | Puch M50, DSV, VZV

Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm · Ø inside: 12.5 mm · Ø outside: 25 mm · Puch OEM number: 329.1.13.006.1

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Material: Rubber · Color: black

Air filter | Puch X50-4 / Duett / MK II

Camouflaged: Yes · Color: black · Material: Plastic · Filter type: Standard sieve · Mounting type: Plug connection · Area of application: Security · Puch OEM number: 349.1.15.270.0

NC-Motorparts Solid-Flange Crankshaft | Puch MV, VS, MS, DS, Monza, X50 (3- and 4-speed)

Manufacturer: NCMotorparts · Cheek type: Full cheeks · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Area of application: Tuning

40 mm Aluminum Cylinder Kit | Puch Supermaxi LG1 / LG2, Monza, X50-4

Nominal diameter: 40 mm · Material: Aluminum · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Silentblock 10/22/33 mm

Ø inside: 10 mm · Ø outside: 22 mm · Total length: 33 mm · Material: Rubber · Material: Steel

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Material: Spring steel · Spring design: Torsion spring · Surface: galvanized (blue) · Length spring hook: 50 mm · Leg length: 45 mm · Ø wire: 2.4 mm · Total length: 125 mm · Ø inside: 25.5 mm · Ø outside: 30 mm · Area of application: Original · Area of application: Standard

GPO Gear Ring 45 T, Black | Puch Maxi, X30 NG-2AH

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Color: black · Ø inside: 94 mm · Thickness: 4.5 mm · Number of teeth: 45 pcs · Surface: powder-coated · Ø bolt circle: 105.5 mm · Number of fixing points: 6 pcs · Hole spacing 2: 68 mm · Ø mounting hole: 6.7 mm · Cranking (offset): 8 mm · Hole spacing: 36.5 mm

Magura adjusting screw brake long

Manufacturer: Magura · Material: Brass · Color: silver · Total length: 47 mm · Total length: 65 mm · Drive: Knurled screw · Surface: nickel-plated · Ø External head: 9.1 mm · Thread length: 24 mm · Ø shaft: 6 mm · Shank length: 11 mm · Thread type: MF6x0.75 (fine pitch thread)

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Cable length: 1650 mm

Normio Retaining Ring A16x1 (Outer)

Fuse type: Outside · Manufacturer: Normio · Material: Spring steel · Place of use: Universal · Nominal diameter: 16 mm

ESJOT drive chain 415H (reinforced) 114L (1A quality)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Surface: blank / oiled · Color: gray · Ø bore: 4.05 mm · Ø Pin: 4 mm

swiing® revival screw set sprocket mounting galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Number of components: 24 pcs · Color: silver · Drive: External hexagon · Screw head: Hexagon · Nominal diameter (thread): 6 mm · Thread length: 22 mm · Shank: No · Thread type: M6x1 (standard thread) · Strength class: 8.8 · Width across flats: 10 mm

swiing® revival return spring brake plate Inox | Puch Maxi

Spring design: Torsion spring · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

Brake return spring rear wheel Inox | Pony GTX Beta 521 (P8926)

Spring design: Torsion spring · Manufacturer: Pony

GPO Chain Kit | Puch Maxi
